Case 223126. Pioneer SX-1250 receiver . Unit does not turn on. 02/20/2023

After troubleshooting found not working power switch.
Problem solved by replacement.LED lamps installed.( picture 5)
Technical review. (picture 8)
This model belongs to “King family” of receivers and one of the best receivers human kind ever build. This model was a legend and will be a legend for long time .
Pluses
1.Has 3 separate protection circuits ( fuses + termofuse , soft start relay and protection relay).
2. Build to last long, long, long time.
3. Top line of electronic components used in manufacturing process.
4. Shielded tuner area, power transformer and shielded important signal path line.(pictures 1,2 )
5. Perfect wires management inside.(picture 3 )
6. Spark and AC line interference solved perfect in design.
7. Perfect components management on boards.
8. Perfect temperature balance by using huge heat sink in output section.
9. Real analog sound . Huge power . All sound parameters tested and found as stated in manual .Not so many units can do that.
10. Wires and heat emitting resistors have termo protection isolation tubes in hot areas.Good ventilation design.( pictures 6 , 7 )
11. High quality metal used on contacts ( bolts on power supply capacitors).
12. Short as possible signal wires.
13. Minimum use of life limited parts and components.
14. Easy to operate , service and work inside.
15. Good sensitive tuner for 1979.
Minuses
We have not found one.

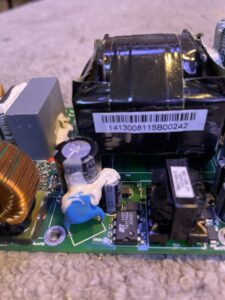

On last 3 pictures we present modern ” high technology and fancy” audio electronics design from 2000-2022. We called it ” Glue technology ” . After while all this glue on boards turns to unexpected carbon resistors in your schematic and start destroying your unit. Just compare and you will know why analog vintage audio is better few times then most modern audio equipment by quality and performance.










Posted on by

Case 456781. 02.13.2023. MA5002 Soundcraftsmen amplifier. Unit in protection mode.

Technical review . This type of “high-end audio equipment” not worth even to spend time on it. After opening top cover – first impression was – couple drunk plumber guys in bar tried to design audio amplifier. They tried hard , but final product by the end appears as something between kitchen microwave and washing machine. Big mix of cheap electronic components and wires in metal case. Low quality unit , will not last long time, overrated .Missing idea, cheap engineering style , cheap components , wires design from microwave, inter-sectional wires quality from pinball machine, sound parameters way out of they promise and more and more…

Pluses- can be used as a heavy lifting object in gym. Can be used for training purpose in technical schools in section ” Worst case scenario”.
Minuses – everything.

—————————————————————————————————-

Posted on by

Case # 8576754. 02.09.2023. Adcom GFA-5500 amplifier repair. No left channel.

After troubleshooting found open R11 10 ohm resistor on power supply board.
Problem solved by component replacement.

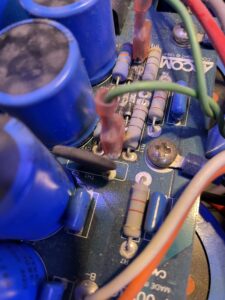

Technical pluses – simplicity , perfect components management on all boards, extremely high output power per channel in range 180- 250 W , good heath sink management, ability to use it as commercial unit for big audience like stadiums, schools and more, easy to set up, good attention to rectifier section and DC voltage quality .

Technical minuses – connections between power board and big filter capacitors relying on bolts only ( oxidation sensitive unit ), sensitive for AC 117v input voltage, no real protection circuit inside, high frequency response in reality is low ( on frequency 10-19 kHz), missing ability to control gain and volume on front panel , high demands for quality speakers, speaker wires and input audio signal . All modules inside and power transformer not shielded. Zero attention to AC line interference .
