Case   345560  .   12/23/2024.  Poineer SX-880 . No sound. Unit in protection mode. Protection relay not clicking  after turn on .


Case   345560  .   12/23/2024.  Poineer SX-880 . No sound. Unit in protection mode. Protection relay not clicking  after turn on .

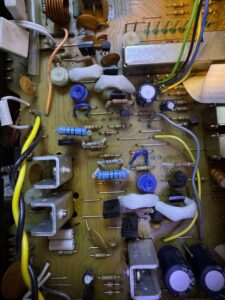

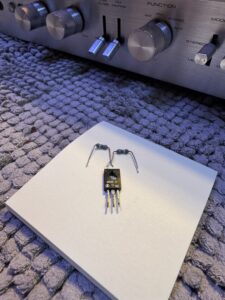

After troubleshooting  found  –  only one channel causing this issue.  ( DC offset voltage test on protection relay) .  After we know what chanel is bad  we focus on this specific channel. Found bad 2SA899 driver transistor( you can use 2sa939 , 2sa914) and bad soldering   joints on board.  After changing transistor , rebuild joints – still no sound. Investigating voltages on this transistor  found resistor 330 ohm connected to base 2sa899 changed value to 10000 ohms. Same story in working channel  – from 330   to 1500 ohms. Changing resistors in  both channels solved the problem.  Our guess – resistor change value problem developed by bad soldering  joints on main board and   hard working transistors in line after  46 years . Or they getting older like people do   or something else  on chemical level .
Nice receiver , easy to work on it ,   enormous power .  All critical and major components designed on  one board.

Posted on Leave a comment

Case 238791 , 12/21/2024. Chevrolet Corvette 1962 tube AM car radio. No sound.

Case 238791 , 12/21/2024. Chevrolet Corvette 1962 tube AM car radio.
No sound.
Interesting radio . Mixed technologies – vacuum tubes and solid state components used .  Use  5 tubes and 1 germanium old style output transistor. Tubes- 12DZ6 / 12AD6 / 12EA6 / 12VD8 / 12AL8. Speaker can be used with insulation transformer only.  Modern speakers   4-8 ohm  will not work.

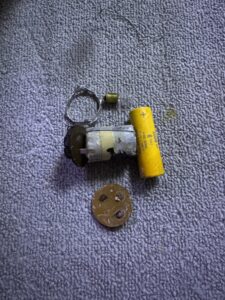

We changed illumination bulb, paper capacitor 1000 uf x 6 v , multi-section aluminum cap . Aluminum cap shell was removed ,  opened , internals removed, new small 3 modern capacitors inserted inside old aluminum can. Can has been glued to chassis by Power grab. Mechanical moving parts lubricated, board cleaned. All tube tested ok , even after 63 years. Respect to  quality product from  RCA  and Silvertone tube production companies  .
